商品の詳細:
|
サイズ: | 8"への1/2」 | タイプ: | c |
---|---|---|---|
糸: | BSP/NPT/DIN2999 | 材料: | ステンレス鋼 AISI 304 & 316/PP/ナイロン/アルミニウム/真鍮 |
ガスケット材料: | NBR/EPDM/FSK/SILICONE | 装置: | CNC加工センター,CNC回路など |
表面仕上げ: | 磨きました | 作業圧力: | 100 ~ 250 PSI |
標準: | MIL AA-59326 / EN14420-7 | 応用: | 石油、化学、造船、水道、ガス産業 |
Description
The Stainless Steel Camlock Coupling, crafted through precision investment casting, ensures precise and stable connections with its one-piece molded structure. Made from high-quality 316/304 stainless steel, it combines excellent chemical resistance and high-temperature performance, adapting to diverse industrial environments. The precision structure enables rapid installation and removal within seconds while meeting international safety standards, making it a reliable choice for fluid transmission applications.

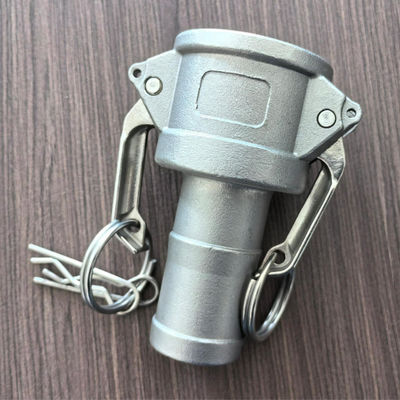

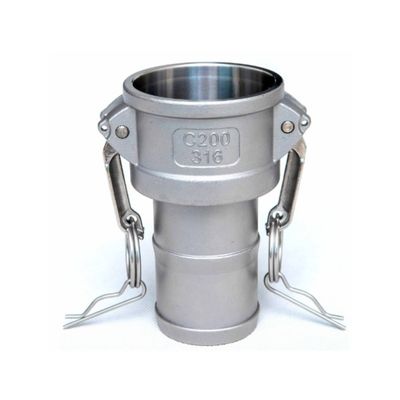

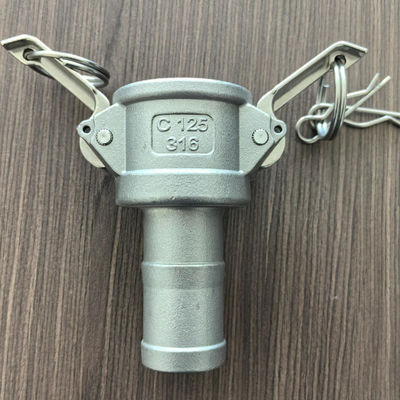

Type C (Female Coupler X Hose Shank)
The Type C Stainless Steel Camlock Coupling is the primary endpoint for a hose. It features a female coupler on one end to accept a male Camlock adapter, and a smooth hose shank on the other. This design is specifically engineered for a permanent, high-integrity connection to a hose, serving as the fundamental link between the flexible hose line and the quick-disconnect system.
Features
Working pressure:
Size (inch) | 1/2" | 3/4"- 2" | 2-1/2" | 3" | 4"- 6" |
Working pressure (PSI) |
150PSI |
250PSI | 225PSI | 200PSI | 100PSI |
Advantages
Direct Hose Attachment: The hose shank is designed for a secure, permanent attachment to a hose, typically secured with two constant-tension clamps to prevent pull-off and leaks.
Optimized Flow: The smooth bore and streamlined internal design minimize flow restriction and pressure drop, ensuring efficient fluid transfer.
Robust Connection: The hose shank provides an excellent gripping surface, ensuring the hose is held firmly in place even under high pressure or when the hose is pulled.
Durability: Manufactured from high-quality materials like stainless steel, it resists corrosion, abrasion, and mechanical stress for long service life.
Applications
Hose Assembly Manufacturing: The standard and most common fitting used to terminate a hose, creating a complete, ready-to-use hose assembly with a quick-disconnect end.
Fluid Transfer and Loading Arms: Used on hoses for transferring fuels, chemicals, water, and other liquids where a secure, leak-free connection is critical.
Industrial Cleaning and Washdown: Attached to washdown hoses in facilities that require frequent tool changes or connection to fixed outlet
Different types
We offer eight types of Stainless Steel Camlock couplings.
To learn more, please click the link beneath the picture.
|
|
|
|
|
|
|
|
