| MOQ: | 1000kgs |
| 価格: | basing on size and quantity |
| 標準梱包: | パレット |
| 配達期間: | 30営業日 |
| 支払方法: | T/T |
| 供給能力: | 月あたり200000kg |

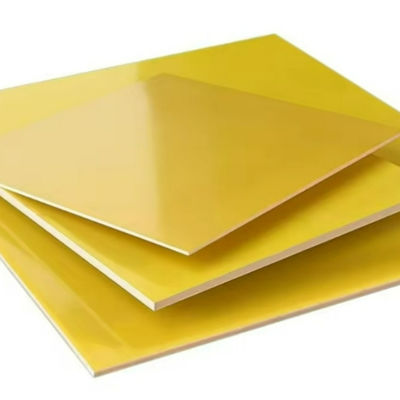

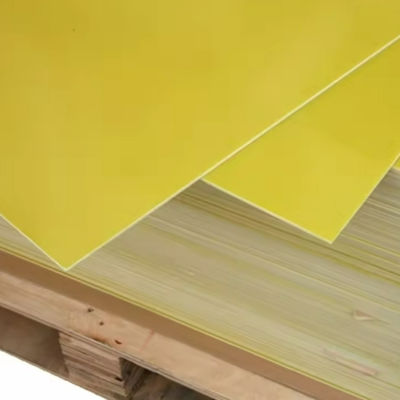

The Phenolic Epoxy class fiber laminate 3240 is an electrical purposed alkali-free reinforced laminate bonded with phenolic epoxy resin, specifically designed for electrical applications. With a Class B thermal stability rating, it offers excellent mechanical and dielectric properties. This material is widely used in electrical and electronic fields for fabricating insulating components and structural parts in equipment. It is also suitable for use in demanding environments, including high humidity and transformer oil.
| Attribute | Value |
| Color | Yellow |
| Shape | Board |
| Surface | Smooth/no Significant Defect |
| Density | ≥1.8g/cm3 |
| Water Absorption | ≤0.5% |
| Tensile strength (MD) | ≥200MPa |
| Compressive strength | ≥350MPa |
| Vertical electric strength (at 90℃±2℃ in oil), 1mm in thickness | ≥14.2kV/mm |
| Parallel breakdown voltage(at 90℃±2℃ in oil) | ≥35kV |
| Relative permittivity(50Hz) | ≤5.5 |
| Insulation Resistance (Normal) | ≥5.0×10^12 Ω |
| Temp. Index | 120℃ |
| Flammability | HB |
