商品の詳細:
|
| 密度: | 1.8-2.0 g/cm3 | 吸水性: | ≤ 22mg |
|---|---|---|---|
| 張力強度 (MD): | ≥300MPa | 比誘電率(50Hz): | ≤ 5.5 |
| 誘電損失(50Hz): | ≤ 0.04 | 応用: | 電気、電子、機械分野で使用される |
| 積層直角耐電圧(油中90℃±2℃)、厚さ1mm: | ≥ 14.2 kV/mm | 積層耐圧（油中90℃±2℃にて）: | ≥ 35KV |
| 絶縁抵抗（水中24時間浸漬後）: | ≧ 5.0 × 10^4 MΩ | 積層面に垂直な曲げ強さ（標準）: | ≧380MPa |

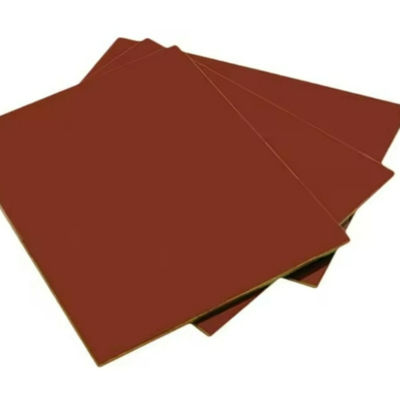

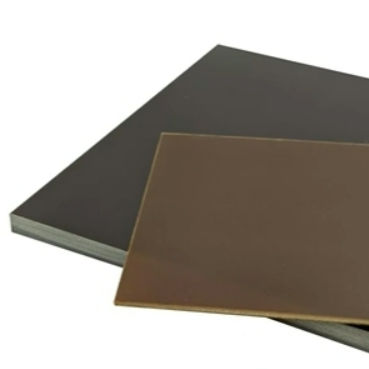

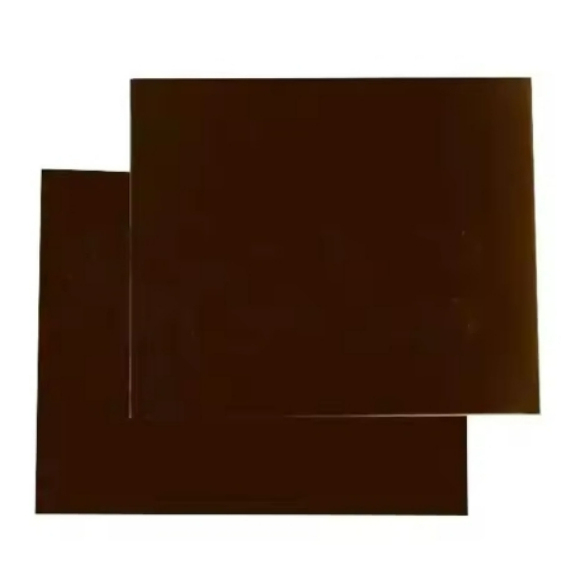

The Epoxy Glass Laminated Sheet is a high-performance industrial laminated sheet. It is manufactured by hot-pressing chemically treated non-alkali glass fiber cloth impregnated with high-Tg epoxy resin, making it a Class H heat-resistant insulating material. This product features high mechanical strength at elevated temperatures and stable electrical properties under high humidity conditions, and is widely used in electrical, electronic, and mechanical fields that demand high reliability.
| Attribute | Value |
| Density | 1.80~2.00 g/cm3 |
| Water absorption (3mm in thickness) | ≤ 22mg |
| Flexural strength perpendicular to laminations (normal) | ≥ 380MPa |
| Tolerances on thiness | 1±0.18mm / 2±0.28mm |
| Tensile strength | ≥ 300MPa |
| Dielectric dissipation (50Hz) | ≤ 0.04 |
| Relative Permittivity (50Hz) | ≤ 5.5 |
| Electric strength perpendicular to laminations (at 90℃±2℃ in oil), 1mm in thickness | ≥ 14.2 kV/mm |
| Insulation resistance (after 24 immersion in water) | ≥ 5.0 × 10^4 MΩ |
| Breakdown voltage parallel to laminations (at 90℃±2℃ in oil) | ≥ 35kV |
