Glass Cloth Adhesive Tape With Easy-release Liner 160 Micron Thickness

認証
中国 UN.Tex (Dalian) Co.,Ltd 認証
中国 UN.Tex (Dalian) Co.,Ltd 認証
オンラインです

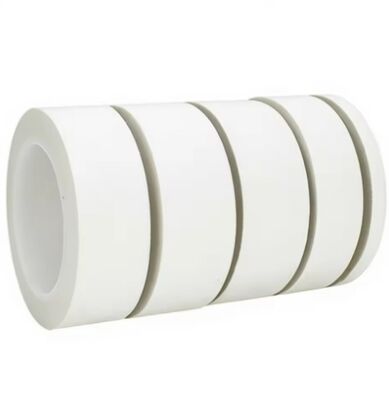

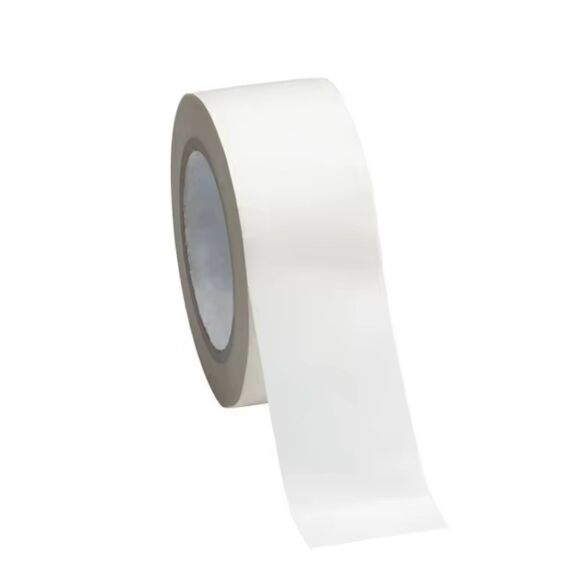

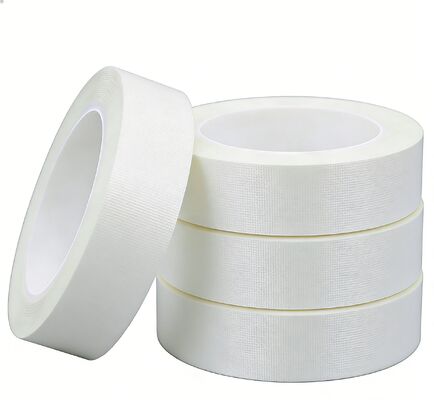

Glass Cloth Adhesive Tape With Easy-release Liner 160 Micron Thickness

Glass Cloth Adhesive Tape With Easy-release Liner 160 Micron Thickness
Glass Cloth Adhesive Tape With Easy-release Liner 160 Micron Thickness Glass Cloth Adhesive Tape With Easy-release Liner 160 Micron Thickness Glass Cloth Adhesive Tape With Easy-release Liner 160 Micron Thickness Glass Cloth Adhesive Tape With Easy-release Liner 160 Micron Thickness

大画像 :  Glass Cloth Adhesive Tape With Easy-release Liner 160 Micron Thickness

商品の詳細:
起源の場所: 中国
証明: RoHS
モデル番号: 652L
お支払配送条件:
最小注文数量: 500M2
価格: by quote
パッケージの詳細: 各列は収縮し 梱包され 輸出箱に入れます
受渡し時間: 30日間
支払条件: T/T、D/P、L/C
供給の能力: 10,000m2

Glass Cloth Adhesive Tape With Easy-release Liner 160 Micron Thickness

説明
裏材: E繊維のグラス クロス バッキングの厚さ: 100UM
総厚さ: 160um 接着剤 Fクラス: アクリル 圧力 敏感
鋼に固執する: ≥4N/10mm 抗張力: ≥200N/10mm
伸長: 3%以上 断熱電圧 Fクラス: ≥1.8KV
サービス温度: -30°C ~ +150°C タックローリングボール: ≤10cm
カットロール: 幅10mm~500mm ロールの長さ: 30メートル
ハイライト:

glass cloth adhesive tape with liner

,

160 micron adhesive insulation tape

,

easy-release adhesive tape for insulation

Glass Cloth Adhesive Tape With Easy-release Liner 160 Micron Thickness
Product Overview
This glass cloth adhesive tape features a three-layer design with high-density glass cloth backing and strong acrylic adhesive, delivering durable bonding and reliable protection. The easy-release liner ensures smooth application for electrical insulation, mechanical fastening, and high-temperature protection applications.
Technical Specifications
Parameter Value
Total Thickness 160 Micron
Adhesion to Steel ≥ 4N/10mm
Tensile Strength ≥ 200N/10mm
Service Temperature -30°C ~ +150°C
Adhesive Type F-Class Acrylic Pressure-Sensitive
Key Advantages
  • Excellent Durability: Flexible, tear-resistant backing ensures reliable performance in demanding conditions.
  • Strong Adhesion: High-quality acrylic adhesive offers lasting bonds to various surfaces.
  • Wide Temperature Range & Protection: Operates from -30°C to 150°C with insulation, leak-proof, and heat-resistant properties.
Applications
  • Reliable Insulation & Fixation: Strong adhesion and high tensile strength make it ideal for wrapping and binding transformer and motor coils, providing secure insulation.
  • Battery Safety Protection: Explosion-proof and leak-resistant properties ensure effective insulation wrapping for high-energy lithium-ion batteries, enhancing pack safety.
  • High-Temperature & Surface Protection: Suitable for high-temperature sandblasting masking and shielding applications, protecting workpiece surfaces from damage.
Glass Cloth Adhesive Tape With Easy-release Liner 160 Micron Thickness 0
